NETWORK SWITCHES

• 4*10/100/1000M PoE ports and 2*10/100/1000M uplink RJ45 ports.
• Port 1-4 can support IEEE802.3af/at PoE standard.
• Single-port PoE power up to 30W and the maximum POE output power less than 65W.
• Automatically detect and recognize the power receiving equipment.
• Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
• User-friendly panel can show the device status through the LED indicator of PWR, Link, PoE.

• 8*10/100/1000M PoE ports and 2*10/100/1000M uplink RJ45 ports.
• Port 1-8 can support IEEE802.3af/at PoE standard.
• Single-port PoE power up to 30W and the maximum POE output power less than 120W.
• Automatically detect and recognize the power receiving equipment.
• Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
• User-friendly panel can show the device status through the LED indicator of PWR, Link, PoE.
• Rack mountable

• 16*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports.
• Port 1-16 can support IEEE802.3af/at PoE standard.
• Single-port PoE power up to 30W and the maximum POE output power less than 250W.
• Automatically detect and recognize the power receiving equipment.
• Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
• User-friendly panel can show the device status through the LED indicator of PWR, Link, PoE.
• Rack mountable

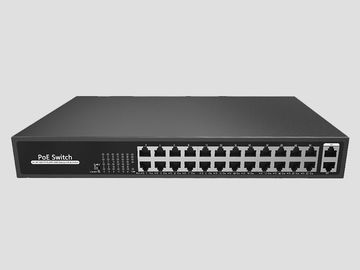

• 24*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports.
• Port 1-24 can support IEEE802.3af/at PoE standard.
• Single-port PoE power up to 30W and the maximum POE output power less than 250W.
• Automatically detect and recognize the power receiving equipment.
• Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
• User-friendly panel can show the device status through the LED indicator of PWR, Link, PoE.
• Rack mountable

• 1*10/100/1000M uplink RJ45 port (Data)
• 1*10/100/1000M bt PoE power receiving RJ45 port (Data/Power)
• 2 RJ45 ports can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/MDI-X self-adaption
• IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x
• Max Output Power/ Voltage : 60W/DC12V
• Power: DC12V(Yellow), DC24V(Red), PoE: PoE (Green)
• Rated Input Voltage :  DC48-57V
• Plug & Play

• 1*10/100/1000M uplink RJ45 port (Data)
• 1*10/100/1000M bt PoE power receiving RJ45 port (Data/Power)
• 2 RJ45 ports can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/MDI-X self-adaption
• IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x
• Max Output Power/ Voltage :  60W/DC24V
• Power: DC12V(Yellow), DC24V(Red), PoE: PoE (Green)
• Rated Input Voltage :  DC48-57V
• Plug & Play

• 1*10/100Base-TX RJ45 port (Data), 1*8P male output port (Data), 1*DC5521 power port (Power)
• Ethernet port can support 10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption
• IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x
• Max Output Power/ Voltage :   Default 12VDC± 0.5V
• Working indicator: POE (Yellow)
• Rated Input Voltage :  44-57VDC
• Plug & Play

• 2*10/100/1000Base-T PoE ports (Data/Power)
• 1*10/100/1000Base-T uplink power receiving port (Data/ Power)
• All ports can support 10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption
• IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX,  IEEE 802.3ab 1000Base-T, IEEE 802.3x
• Max Output Power/ Voltage :   Default 12VDC± 0.5V
• Single-port Max PoE power : 30W, IEEE 802.3af/at
• Total PWR/ Input Voltage  :   30W/ (AC100-240V)
• Plug & Play

• Long reach Ethernet & PoE extension over existing 2-Wire twisted cable
• Data + Power over twisted cable
• Data and PoE distance up to 300 m
• 100Mpbs Full Duplex
• PoE, PoE+, Extra PoE (Max. 60W PoE output, ETP-01T model only with DC Power adapter)
• LED Indication (Data, Power)
• Plug & Play
• Surge Protection
• Support PoE, PoE+ Input (25.5W) from PoE Switch / PoE NVR (ETP-01R model only)
• Slim design

 ·    Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz totals 1750 Mbps Wi-Fi speeds.

 ·    Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.

 ·    Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

 ·    Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.

 ·    Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz†
·    Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power.
·    Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.‡
·    Integrates with the Omada SDN platform for centralized management
·    Advanced Features: Omada Mesh, Seamless Roaming, and more.
·    PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)

 ·    Blazing-Fast AX3000 WiFi 6 Speeds:: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.

 ·    Higher Network Efficiency: Deliver data to more devices at the same time with less lag.
·    Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.

 ·    Multiple Gigabit Ports: Connect multiple devices with three downlink gigabit ports, one with PoE pass-through.

 ·    Centralized Cloud Management

 ·    POE
