CLIMATE | EMBRACE COZY COMFORT

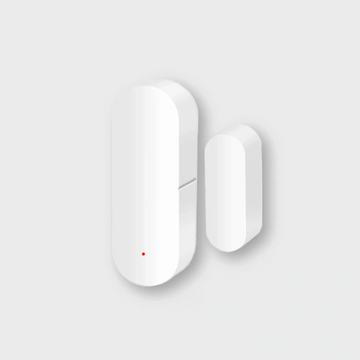

Zigbee Window/Door Detector

DS01

Input voltage: DC3V LR03*2
Standby current: ≤10uA
Alarming current: 15mA
Low-voltage notification: ≤2.5V
Zigbee frequency: 2.400GHz-2.484GHz
Magnetic control distant: 15mm
Working temperature: -10°C~+50°C
Working humidity: ≤95%RH
HyPanel Compatible

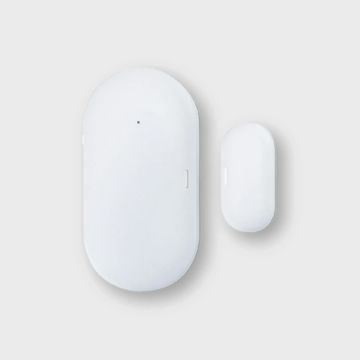

Zigbee Window/Door Detector

MC500A

Input voltage: DC3V LR03*2
Standby current: ≤10uA
Alarming current: 15mA
Low-voltage notification: ≤2.5V
Zigbee frequency: 2.400GHz-2.484GHz
Magnetic control distant: 15mm
Working temperature: -10°C~+50°C
Working humidity: ≤95%RH
HyPanel Compatible

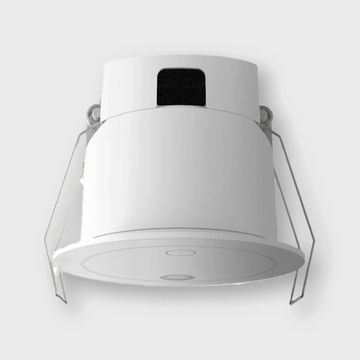

Zigbee Human Presence Sensor

HM101-24G

Working Voltage: DC12V
Light Perception: 0-2000lux
Working Current: ≤70mA
Human Detecting Distance: 0.3-9m
Target Disappearance Delay Time:0.5s-25min
Sensitivity: 0-9 (default 7)
Working Temperature: -20°C~+70°C
Working Humidity: 95% RH
HyPanel Compatible

Zigbee 90° PIR Motion Detector

PIR01

Wireless Technology: Zigbee 3.0
Working Voltage: DC3V CR123A
Static Current: <35uA
Working Current: s≤15mA
Low-voltage Notification: support
Detecting Distance: 8m
Detection Angle: 90° ceiling mounted
Working Temperature: -10°C~+50°C
Working Humidity: 95% RH
HyPanel Compatible

Zigbee 360° PIR Motion Detector

PIR02

Wireless Technology: Zigbee 3.0
Working Voltage: DC3V LR03*2, USB can be used with rechargeable battery
Static Current: <75uA
Working Current: s≤30mA
Low-voltage Notification: support
Detecting Distance: 6m
Detection Angle: 360° ceiling mounted
Working Temperature: -10°C~+50°C
Working Humidity: 95% RH
HyPanel Compatible

Zigbee Glass/Wall Break Vibration Detector

VB01

Wireless Technology: Zigbee 3.0
Working Voltage: DC3V AAA dry battery 1.5V*2
Static Current: <10uA
Working current: ≤20mA
Low-voltage notification: support
Detecting Distance: 10-30m
Working Temperature: -10°C~+50°C
Working Humidity: 95% RH
HyPanel Compatible

Zigbee Water leakage detector

SQ500B

Input voltage: DC3V CR123A
Quiescent current: ≤10uA
Alarm current: 75mA
Low-Voltage Indication: ≤2.5V
Zigbee working frequency: 2.400GHZ-2.484GHZ
Detection method: water detection
Installation method: Mount on the ground
Working temperature: -10°C~+50°C
Working humidity: up to 95%RH
HyPanel Compatible

Zigbee Smart Water Valve Controller

VB01

Wireless Technology: Zigbee 3.0
Working Voltage: DC3V AAA dry battery 1.5V*2
Static Current: <10uA
Working current: ≤20mA
Low-voltage notification: support
Detecting Distance: 10-30m
Working Temperature: -10°C~+50°C
Working Humidity: 95% RH
HyPanel Compatible

Ecobee Smart Thermostat

Lite/Pro

Automatically lowers the temperature when you’re sleeping to keep you cool and comfortable.
Pre-cools or pre-heats your home before you arrive, so it’s comfortable the moment you walk in.
Works with available Smart Sensors to detect which rooms are in use and adjusts the temperature accordingly.
HyPanel Compatible
